Home > Sunlight Readable Display >

1024x768 12 V Sunlight Readable Display -20 to 70 temperature with RGB DVI digital inputs

Product Categories
AXNEW DISPLAY TECHNOLOGY CO.,LTD
Contact Now

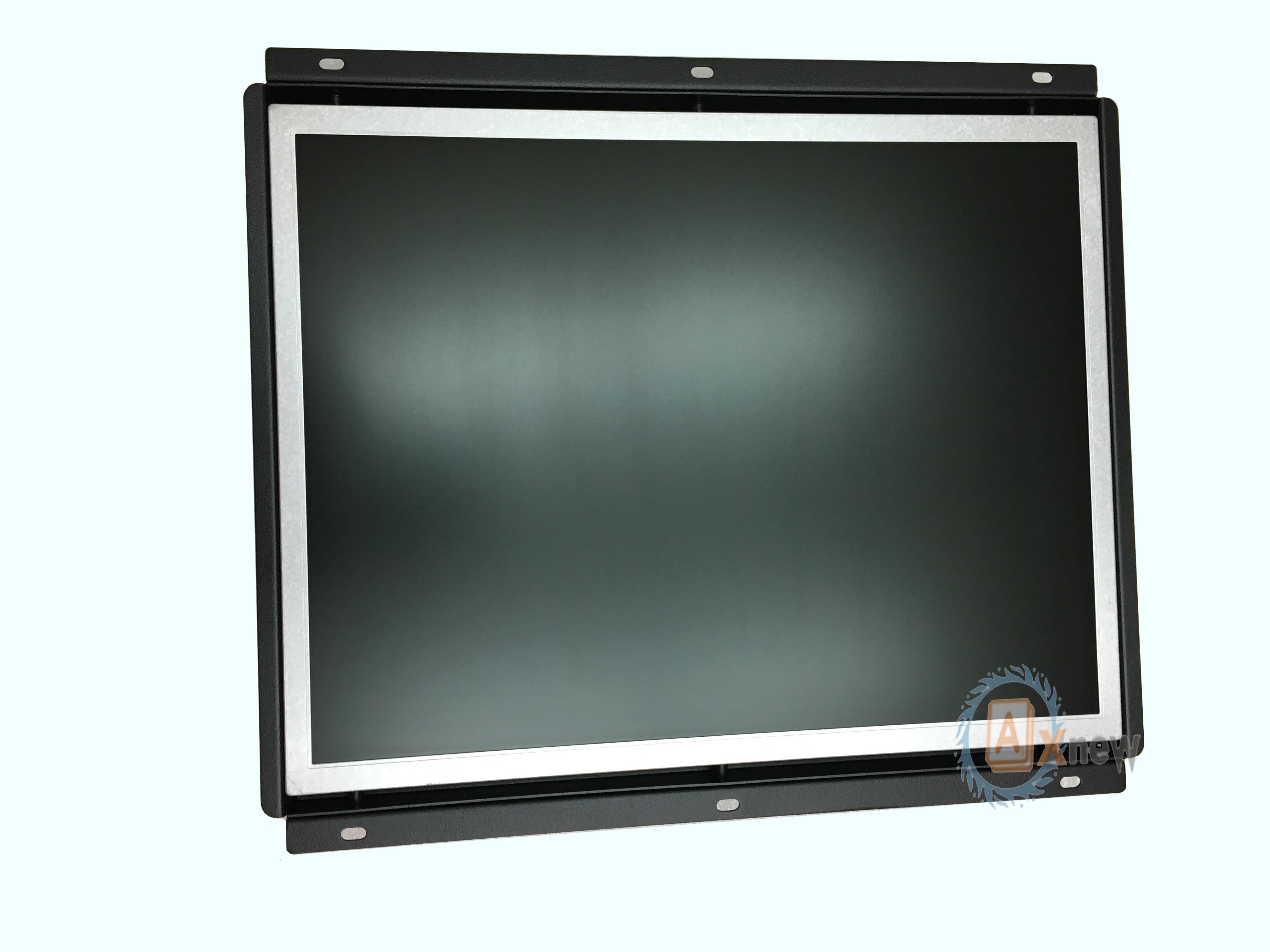

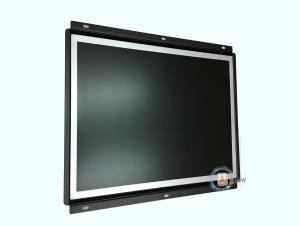

1024x768 12 V Sunlight Readable Display -20 to 70 temperature with RGB DVI digital inputs

  • 1
  • 2

Brand Name : AXNEW

Model Number : AXD-15OPN2P2-VH4

Certification : CE FCC Rohs

Place of Origin : China

MOQ : 10 pcs

Price : US$100~US$200

Payment Terms : Western Union, T/T,

Supply Ability : 2000 units/ month

Delivery Time : 5-8 working days

Packaging Details : 5 pcs/carton

Size : 15 inch

Format : 4:3

Brightness : 1000nits

Signal inputs : vga DVI

Operating Temp : -20~70 degrees

Feature : Slim; Metal Case; Wide temperature

LED backlight : 50,000 Hours(min)

Application : Outdoor kiosks, outdoor monitor

Contact Now

1024x768 12 V Sunlight Readable Display -20 to 70 temperature with RGB DVI digital inputs

Display Specifications
Display 15.0" Color TFT High Brightness monitor
Model Name AXD-15OPN2P2-VH4
Active Display Area (mm) 305.7(H)x229.7(V)
Pixel Pitch (mm) 0.297 (H) x 0.297 (V)
Resolution (Pixel) 1024X768
Brightness (CD/m^2) 1000cd/m^2
Contrast Ratio 600:1
Viewing Angle (CR >=10) 160/140
Power consumption 20.5 W typical, normal operation
Touch Screen NO touch
OSD Control On the back side
I/O Connectors 1x12v,1XVGA,DVI-D
Power Input AC 100~240V,Universal,±10% ; AC/DC 12V4A
Mechanical Specifications
Construction Roasted Metal Frame
Dimensions 343x 294x 34.1(mm)
Mounting backside fixing holes
Power source AC 100~240V/ 12V DC
Environment Specifications
Operating Temperature -20~70℃
Storage Temperature -30~80℃
Rating Facilitate installation of the demolition, solid portfolio
Ordering Information 15.0" Color TFT sunlight readable monitor

1024x768 12 V Sunlight Readable Display -20 to 70 temperature with RGB DVI digital inputs
1024x768 12 V Sunlight Readable Display -20 to 70 temperature with RGB DVI digital inputs
