170/170 Viewing Capacitive Touch Monitor with Brackets and Vesa Mounting

Product Categories

AXNEW DISPLAY TECHNOLOGY CO.,LTD

Contact Now

Name: 170170 Viewing Capacitive Touch Monitor with Brackets and Vesa Mounting
Brand: Axnew
Price: 150 USD

Brand Name : Axnew

Model Number : AXD-19OPN1P1-C1

Certification : CE FCC Rohs

Place of Origin : China

MOQ : 10 Pieces

Price : US$150-200/PCS

Payment Terms : T/T, Paypal, Western Union

Supply Ability : 2500 pieces/month

Delivery Time : 10 working days

Packaging Details : 5 Pcs /Carton with firm foam

Screen Size : 19 inch

Pixel : 1280x1024

Contrast Ratio : 1000:1

Brightness : 300nits

Input signal : VGA DVI-D

Colors : 16.7M

Contact Now

19'' 170/170 Viewing Projection Capacitive Touch Monitor with Brackets and Vesa Mounting

Display Specifications
Display	19" Color TFT Projected capacitive touch open frame monitor
Model Name	AXD-19OPN1P1-C1
Active Display Area (mm)	376.3 (H)x301.1(V)
Pixel Pitch(mm)	0.297 (H) x 0.297 (V)
Resolution (Pixel)	1280X1024
Brightness (CD/m^2)	300cd/m^2
Contrast Ratio	1000:1
Viewing Angle (CR >=10)	170/170
Power consumption	19.5 W typical, normal operation

Touch Screen	3.9mm projected-capacitive Touch;USB Port;eeti
Construction	G+G Cover glass
Durability	50 Million touches(min)

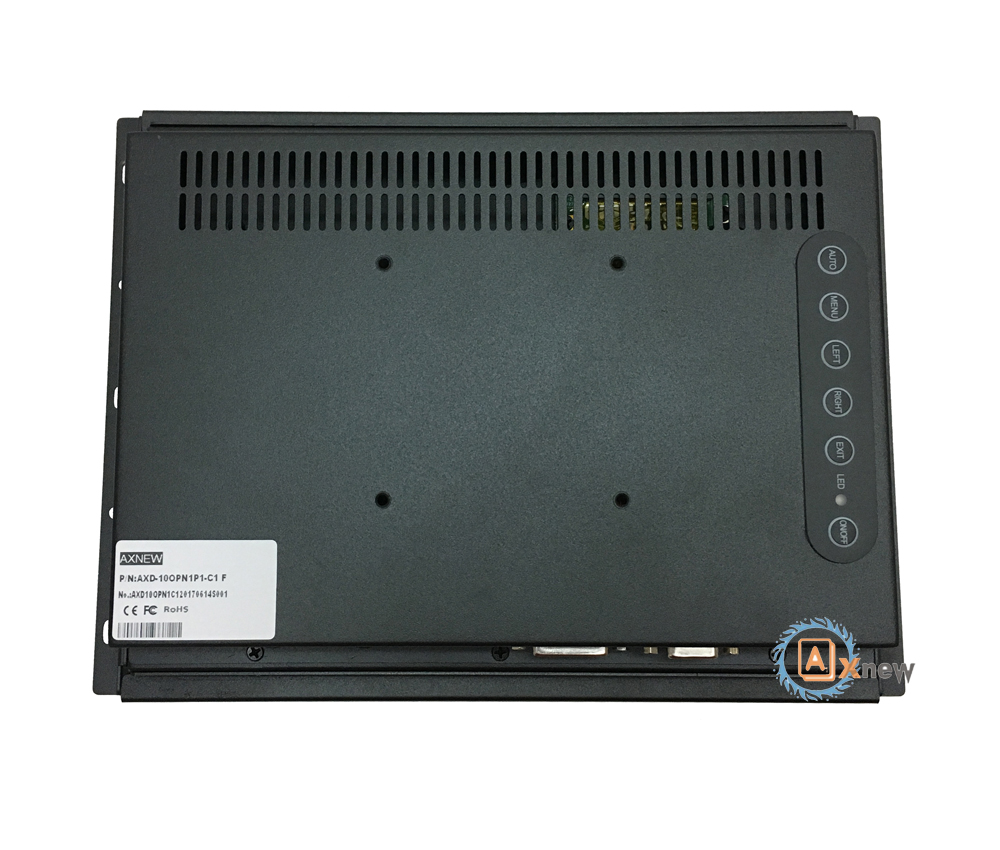

OSD Control	On the back side
I/O Connectors	1x12v,1XVGA,DVI-D
Power Input	AC 100~240V,Universal,±10% ; AC/DC 12V4A

Mechanical Specifications
Construction	Roasted Metal Frame
Dimensions	432.0 x 339.0x49.8 (mm)
Mounting	VESA 100X100
Power source	AC 100~240V/ 12V DC

Environment Specifications
Operating Temperature	-5~60℃
Storage Temperature	-70~70℃
Ordering Information	19" projected-capacitive touch monitor

1.New and A grade perfect panels with 1280X1024

2. industrial control board supports the displays working 24 hours

3. Projected capacitive touch with 3mm anti-vandal function

170/170 Viewing Capacitive Touch Monitor with Brackets and Vesa Mounting
