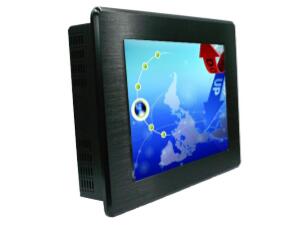

8.4 inch 450nits Industrial Panel PC with ATOM N2600 / 2800 Processor

Product Categories

AXNEW DISPLAY TECHNOLOGY CO.,LTD

Contact Now

Name: 84 inch 450nits Industrial Panel PC with ATOM N2600 2800 Processor
Brand: Axnew
Price: 200 USD

Brand Name : Axnew

Model Number : AXD-08PPC-V2

Certification : CE FCC

Place of Origin : China

MOQ : 20 Units

Price : US$200-450/Unit

Payment Terms : T/T, Western Union, L/C

Supply Ability : 1000 units/month

Delivery Time : 5-7 working days

Packaging Details : 5 units/carton

Size : 8.4 inch

Type : 8.4'' Passive cooled Mini panel pc

Brightness : 450 cd/m2

Resolution : 800x600

Viewing Angel : 160(H)/140(V)

Monitor Type : 5 wire Resistive Touch screen

Contrast Ratio : 600:1

Ports : 2xLAN; 12V DC Jack;HDMI, VGA

CPU : ATOM N2600 1.6GHZ

Contact Now

8.4 inch 450nits Industrial Touch Panel PC with ATOM N2600/2800 Processor

Panel PC information
Model Number	AXD-08PPC-V2
Model Number	8.4’’ MiniTouch pc
Case/Bezel Color	Black
TFT Type	8.4 inch AUO new industrial LCD with LED backlight
Aspect ratio	4:3
Useful Screen Area	170.4 mm x 127.8 mm
Touch Panel	Industrial Resistive Flat Screen
Touch response time	10ms (typical
Touch PC Dimensions	232x 186x53.3 mm
Optimal (native) Resolution	800X600
LCD panel Pixel pitch	0.264 x 0.264mm
LCD panel Colors	262K/16.7 million
LCD panel Brightness	450 cd/m2
LCD panel Response Time	8 ms
Contrast Ratio	600:1
Viewing Angle ( Wide )
Horizontal (left/right)	±80° or 160° total
Vertical (up/down)	65°(up), 65°(down) or 30° total
Output Interface	COM/HDMI type/ Audio/Mic
Input Interface	USB*3
Net	Internet LANX2
Watch Dog Technology	Support
Power Specification	External AC to DC power brick
	Monitor input: +12VDC ±5%,3.0 A; DC Jack (2.5)
	AC to DC power brick input: 100-240 VAC, 50/60 Hz
	Power dissipation: 10W max
ECM (Embed Computer Module)	Intel® processor N2600 1.6GHZ 3.5'' SSD: 32G;Rom:2G(DDR3,max6G); Operation System:winxp/Win7/win8/win10/linux
Temperature	Operating: -10°C to 60°C ;Storage -20°C to 70°C
Humidity (non condensing)	Operating: 20%-90%; Storage: 10%-95%
Shipping Carton Dimensions	490 x 440 x340 mm (Five pieces in one )
Weight (approx.)	Actual: 11kg ;Shipping: 15kg
Dimensions
Holes fixings	Vesa mounting 100x100
Drawings	Please contact us for details

8.4 inch 450nits Industrial Panel PC with ATOM N2600 / 2800 Processor
