Home > Mini Touch Panel PC >

5'' Mini Touch Panel PC Cortex 8 1GHz For WinCE Android Linux Supporting QT VS

AXNEW DISPLAY TECHNOLOGY CO.,LTD
Contact Now

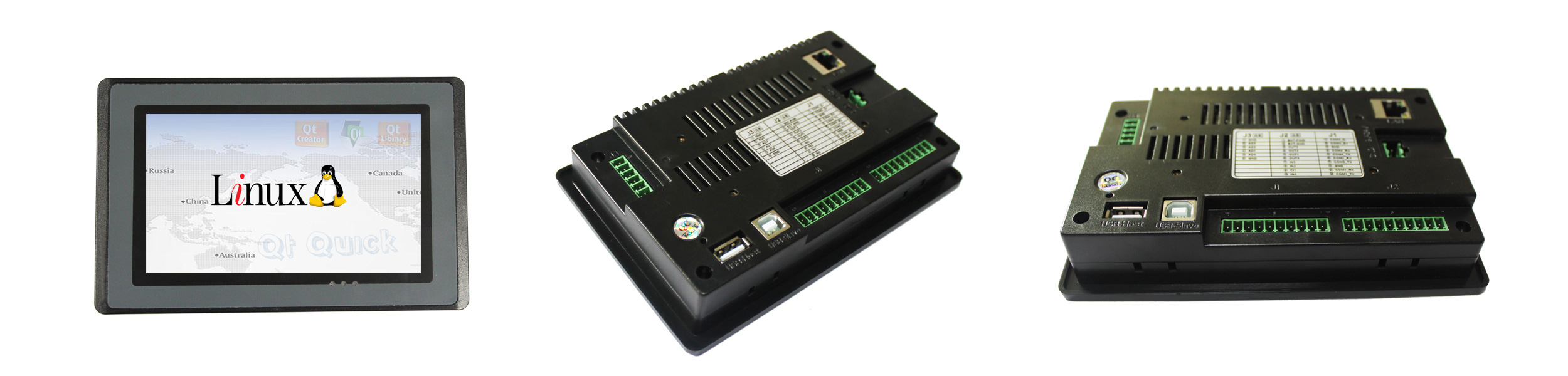

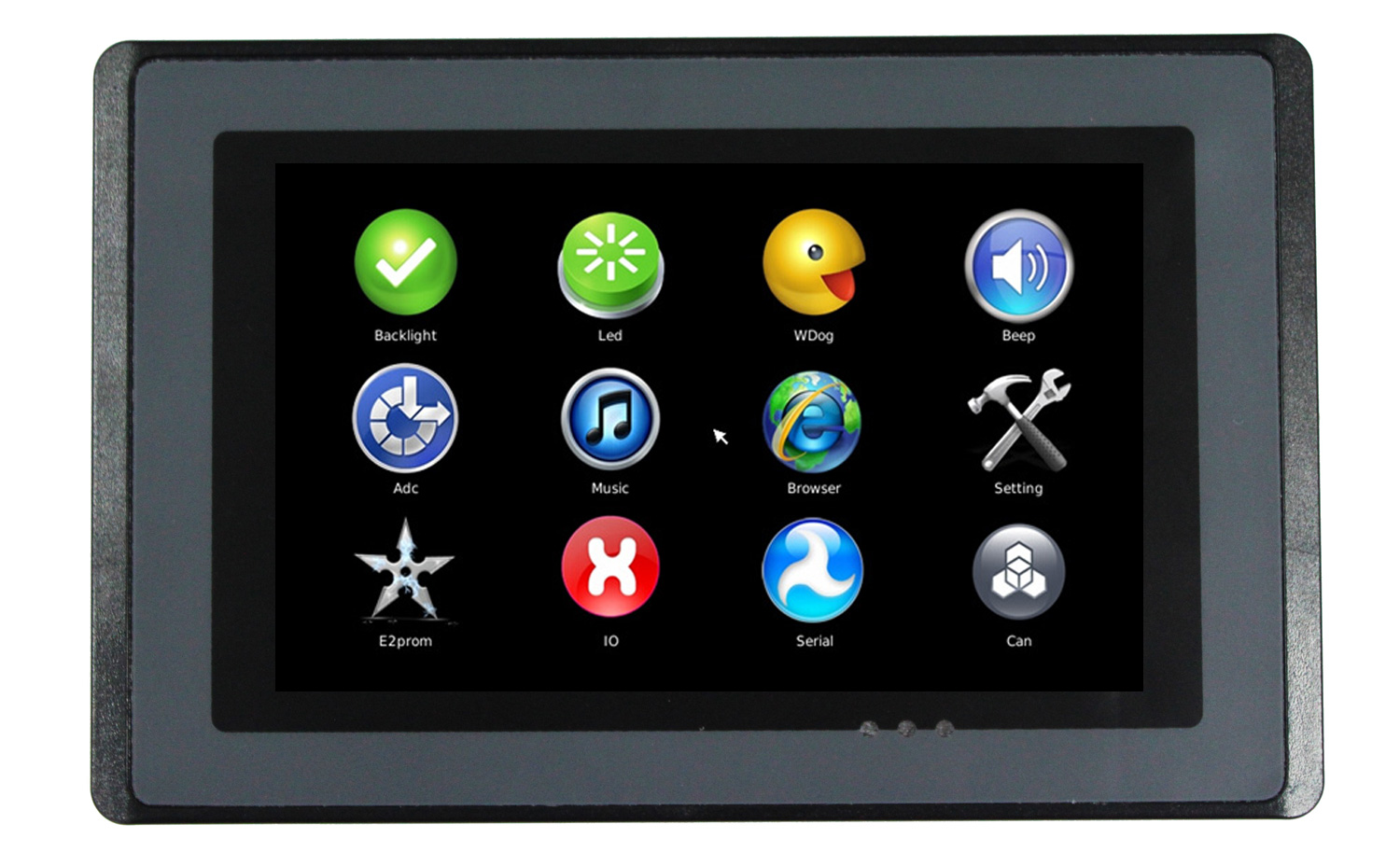

5'' Mini Touch Panel PC Cortex 8 1GHz For WinCE Android Linux Supporting QT VS

  • 1
  • 2

Model Number : AXD-05OPIPPC

Certification : CE FCC ROHS

Place of Origin : China

MOQ : 5 units

Price : US$150~200/Unit

Payment Terms : T/T, Western Union, D/A

Supply Ability : 1000 units/month

Delivery Time : 5 working days

Packaging Details : 10 pcs/carton

Size : 5 inch

Name : Mini Touch Panel pc with andriod linux wince

Housing : Aluminum with plastic

Touch : resistive touch

O.S : Linux3.2;Andriod 4.4;WinCE6.0

Contact Now

5'' Mini Touch Panel pc Cortex 8 1GHz For WinCE Android Linux Supporting QT VS

Panel PC information
Model Number AXD-05OPIPPC
5.0’’ Mini Touch panel pc
Case/Bezel Color Black front bezel
TFT Type Industrial LCD with LED backlight
Aspect ratio 16:9
Touch Panel Industrial 4 wire Resistive Flat Screen
Touch response time 10ms (typical)
Optimal (native) Resolution 800 x 480
LCD panel Pixel pitch 0.264 x 0.264 mm
LCD panel Colors 16.2 million
LCD panel Brightness 300 cd/m2
LCD panel Response Time 8ms
Contrast Ratio 500:1
Viewing Angle ( Wide )
Horizontal (left/right) ±60° or 120° total
Vertical (up/down) 60°(up),60°(down) or 120° total
CPU

Cortex-A8 1GHz

storage 512MDDR3 SDRAM( Andriod is 1G)
Serial Ports 4 x COM ports (1x RS-232/422/485 by-pin connector)
USB Ports 2 x USB external ports
LAN 1 x LAN RJ-45 connector/WIFI options
NandFlash 256M Flash
DC Power In 1 x 4-pin connector
Extended storage 32G for SD card
Optional interfaces CAN/RS485
Supporting O.S Linux3.2;Andriod 4.4;WinCE6.0
Power Specification DC 9V-24V
Working Environment
Temperature Operating: 0°C to 50°C ;Storage -10°C to 65°C
Operating Humidity 5 ~ 90% RH @40°C (non-condensing
Vibration 5 ~ 500Hz, 3Grms Random (with CF/SSD)
Dimensions
Mounting Type Embedded Installation
Weight (Net) 1.5kgs/ piece
Drawings Please contact us for details

Packaging & Delivery

Packing details

1x 5.0 Inch Mini Touch Panel PC;

Packed in 10 pieces/carton with protection foam

Optional accessories: 1xVGA, 1x Power supply cable, 1x power adapter

Delivery terms 7- working days for stock products after receiving payments; 15working days for order production

5'' Mini Touch Panel PC Cortex 8 1GHz For WinCE Android Linux Supporting QT VS

5'' Mini Touch Panel PC Cortex 8 1GHz For WinCE Android Linux Supporting QT VS


Product Tags:

small touch screen computer



mini touch screen computer


Quality 5'' Mini Touch Panel PC Cortex 8 1GHz For WinCE Android Linux Supporting QT VS wholesale

5'' Mini Touch Panel PC Cortex 8 1GHz For WinCE Android Linux Supporting QT VS Images
