500nits N2600 Mini Touch Panel PC 7 inch with Projected Capacitive Touch

AXNEW DISPLAY TECHNOLOGY CO.,LTD
Contact Now

500nits N2600 Mini Touch Panel PC 7 inch with Projected Capacitive Touch

  • 1
  • 2

Brand Name : Axnew

Model Number : AXD-07PPC-VH2 C

Certification : CE FCC

Place of Origin : China

MOQ : 20 Units

Price : US$300-450/Unit

Payment Terms : T/T, Western Union, L/C

Supply Ability : 1000 units/month

Delivery Time : 5-7 working days

Packaging Details : 5 units/carton

Size : 7.0 inch

Type : 7.0'' Passive cooled Mini panel pc

Brightness : 500 cd/m2

Resolution : 800x480

Viewing Angel : 160(H)/140(V)

Touch Type : Projected capacitive touch with EETI

Contrast Ratio : 600:1

Ports : 2xRJ45; VGA ;RS232

Contact Now

7 inch High Bright 500nits N2600 Mini Touch Panel PC with Projected Capacitive Touch

Panel PC information
Model Number AXD-07PPC-VH2 C
7’’ Mini Touch panel pc
Case/Bezel Color Black
TFT Type 7.0 inch AUO new industrial LCD with LED backlight
Aspect ratio 16:9
Useful Screen Area 154.08 (H) x 85.92 (V)
Touch Panel Industrial capacitive Flat Screen with 4mm anti-vandal glass
Touch response time 10ms (typical)
Touch PC Dimensions 200x 150x50mm
Optimal (native) Resolution 800X480
LCD panel Pixel pitch 0.264 x 0.264mm
LCD panel Colors 262K/16.7 million
LCD panel Brightness 500 cd/m2
LCD panel Response Time 8 ms
Contrast Ratio 600:1
Viewing Angle ( Wide )
Horizontal (left/right) ±80° or 160° total
Vertical (up/down) 65°(up), 65°(down) or 30° total

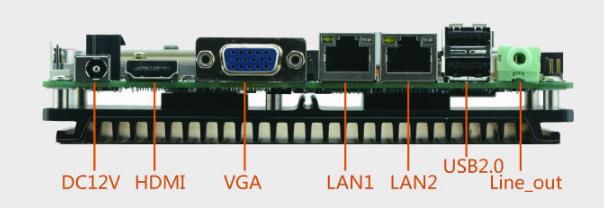

Output Interface COM/HDMI type/ Audio/Mic
Input Interface USB*3
Net Internet LANX2
Watch Dog Technology Support
Power Specification External AC to DC power brick
Monitor input: +12VDC ±5%,3.0 A; DC Jack (2.5)
AC to DC power brick input: 100-240 VAC, 50/60 Hz
Power dissipation: 10W max
ECM (Embed Computer Module)

Intel® processor N2600 3.5'' industrial board

SSD: 32G;Rom:2G(DDR3,max6G);

Operation System:winxp/Win7/win8/win10/linux

Temperature Operating: -10°C to 60°C ;Storage -20°C to 70°C
Humidity (non condensing) Operating: 20%-90%; Storage: 10%-95%
Shipping Carton Dimensions 490 x 440 x340 mm (Five pieces in one )
Weight (approx.) Actual: 11kg ;Shipping: 15kg
Dimensions
Holes fixings Vesa mounting 100x100
Drawings Please contact us for details
