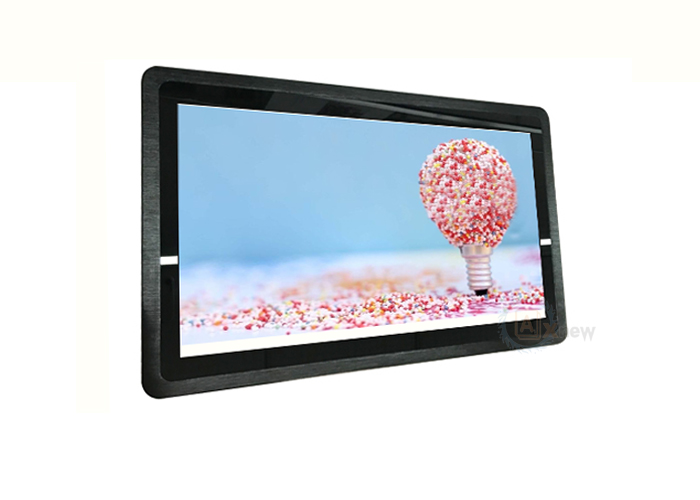

HDMI VGA Video Inputs 15.6'' IP65 Touch Screen Monitor

Name: HDMI VGA Video Inputs 156 IP65 Touch Screen Monitor
Brand: AXNEW
Price: 300 USD

Quality HDMI VGA Video Inputs 15.6'' IP65 Touch Screen Monitor wholesale

Brand Name : AXNEW

Model Number : AXD-15OPN2P3-V6C ( DP, HDMI VGA, DVI)

Certification : CE FCC CCC ROHS

Place of Origin : China

MOQ : 10 pieces

Price : US$300-400/pcs

Payment Terms : T/T, Western Union, L/C

Supply Ability : 2500pcs/month

Delivery Time : 5-8 working days

Packaging Details : 5 pcs/carton

Name : Industrial IP65 front monitor

Resolution : 1920x1080

Brightness : 400nits

Wide viewing angle : 80/80/75/75 ( 160/150)

Operating Temp. : -20-70 degrees

LED backlight : 50,000 hours (min)

Touch type : projection capacitive touch with eeti chipset

Protective glass : anti-vandal cover with 6H hardness

Front treatment : IP65 sealing treatment

Signal inputs : DVI;VGA, DP, HDMI, AV

Contact Now

Displayport with full HD 15.6'' IP65 Touch screen monitor with HDMI VGA Video Inputs

Display Specifications
Display	15.6" Color TFT IP65 Touch monitor
Model Name	AXD-15OPN2P3-V6C
Active Display Area (mm)	344.16(H)x193.59(V)
Pixel Pitch (mm)	0.1795(H)x0.1795(V)
Resolution (Pixel)	1920x1080
Brightness (CD/m^2)	400nits
Contrast Ratio	800:1
Viewing Angle (CR >=10)	170/160
Power consumption	10.6 W typical, normal operation
Touch Screen	Pro-Capacitive touch panel( USB Controller)
OSD Control	On the back side
I/O Connectors	1x12v,1XVGA,1xDisplay port, 1xHDMI
Power Input	3 pin connector with 24V converter
Mechanical Specifications
Construction	Steel housing & black Color, anti-vandal
Dimensions	397.0x 25270.0x43.0(mm)
Mounting	Embedded ,up and down; left-right fixing holes, vesa75x75;100x100 Wall Mounting Optional
Power source	AC 100~240V/ 12V DC
Environment Specifications
Operating Temperature	-20~70℃
Storage Temperature	-30~70℃
Rating	Facilitate installation of the demolition,solid portfolio
Ordering Information	15.6” LCD with 2mm anti-vandal capacitive touch with display port Input

Features and Advantages

1. 15.6 inch capacitive touch with flat true design, with IP65 treatment , is new and popular

touch technology for Medical industry , Automatic equipments etc

2. Slim and simple open frame to mount all the LCD kits in one , which is easily installed

3. industrial control board supports the displays working 24 hours, display port , hdmi, DVI signal inputs

4. Professional and industrial hardware and parts to guarantee its working normally in rough environment

5.8-40v wide voltage could be supported , 24V DC is typical voltage for the monitor.

6. Projection capacitive touch with anti-vandal glass, using eeti chipset witout any interference.

HDMI VGA Video Inputs 15.6'' IP65 Touch Screen Monitor
